GAS TURBINE GENERATOR SET

VPS3

VPS series generator sets are designed for reliable power generation in a variety of Industrial and Oil & Gas applications. Proven modular design simplifies and reduces on site installation time and construction costs.

< BACK TO OIL & GAS
< BACK TO INDUSTRIAL POWER GENERATION

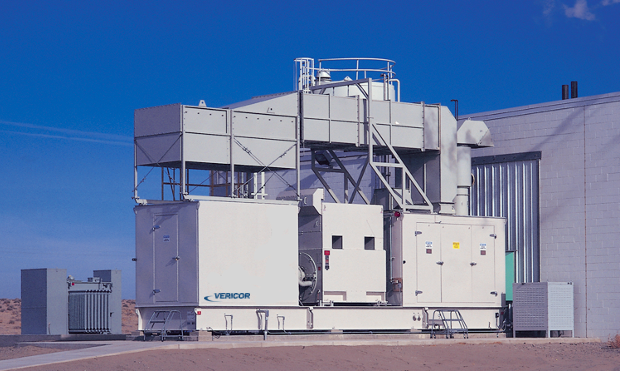

VPS3 Image

RELIABLE PROVEN POWER

ISO CERTIFICATION 9001:2019

Our management system has been certified by SGS

PRODUCT BROCHURE

VPS Series gas turbine generator sets for power generation, combined heat & power or offshore power applications

[gravityform id="1" title="false" ajax="true"]

SPECIFICATIONS

VPS3VPS4
Power3,036 kW3,493 kW
Heat Rate12,715 Btu/kWh
13,415 kJ/kWh
11,979 Btu/kWh
12,639 kJ/kWh
Thermal Efficiency26.9 %28.5 %
Exhaust Temperature1,092 ℉
589 ℃
1,075 ℉
579 ℃
Exhaust Flow28.2 lb/sec
12.8 kg/sec
30.3 lb/sec
14.2 kg/sec
Weight64,000 lb
29,030 kg
68,000 lb
30,844 kg
Length25.30 ft
7.72 m
25.30 ft
7.72 m
Height20.00 ft
6.10 m
20.00 ft
6.10 m
Width8.60 ft
2.64 m
8.60 ft
2.64 m

APPLICATIONS

  • Simple Cycle Power Generation
  • Combined Heat & Power
  • Distributed Energy



  • Peaking
  • Emergency or Standby Power
  • Offshore Power

BENEFITS

  • High reliability and availability from proven robust aero-derivative design gas turbine
  • Low maintenance costs, 60,000 hrs between major overhauls
  • Utilizes clean and economical natural gas, including treated wellhead gas
  • High part load efficiency from twin shaft design
  • High quality exhaust heat stream can be used in other processes

CO-GENERATION PLANT: GAS TURBINE IS RUNNING OVER 60,000 HOURS IN A WOOD MANUFACTURING PLANT.

SUCCESS STORY

Project was made attractive by a 35% tax deductions and end in over 50% operating cost saving and a great reliability.
