MILITARY MARINE GAS TURBINE
ETF40B

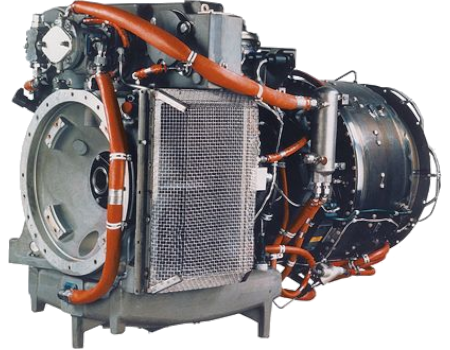

The Vericor ETF40B is an aero-derivative marine gas turbine that is mainly used in navy hovercraft applications to drive propulsion and lift fans.
< BACK TO MARINE PROPULSION
< BACK TO MARINE PROPULSION
DRIVEN BY SPEED & POWER
The design of the TF series gas turbines allows simple cantilever mounting from the reduction gear, which results in both the lightest weight installation possible and the most efficient design. With more than 50 years of heritage originating with the Lycoming Engine Company, these durable gas turbines have accumulated hundreds of thousands of hours in military and commercial service around the world.
ISO CERTIFICATION 9001:2019
Our management system has been certified by SGS
SPECIFICATIONS
| TF40 | ETF40B | TF50B | |
| Continuous Power | 4,000 hp 2,983 kw | 5,035 hp 3,755 kw | 5,100 hp 3,803 kw |
| Boost Power | 4600 hp 3430 kw | 5,460 hp 4,072 kw | 5,600 hp 4,176 kw |
| Specific Fuel Consumption (SFC)* at MC | 0.499 lbs/ hp-hr 304 gm/kw-hr | 0.461 lbs/ hp-hr 280 gm/kw-hr | 0.464 lbs/ hp-hr 282 gm/kw-hr |
| Weight (with Accessories TF40) | 1,325 lbs 602 kgs | 1,425 lbs 647 kgs | 1,440 lbs 654 kgs |
| Length (a) flange to flange* | 52 in 1,321 mm | 52 in 1,321 mm | 52 in 1,321 mm |
| Height (b) | 41 in 1,046 mm | 41 in 1,046 mm | 41 in 1,046 mm |
| Width (c) | 35 in 889 mm | 35 in 889 mm | 35in 889 mm |
| Fuel | Marine diesel, Jet Fuel, Kerosene, LNG | Marine diesel, Jet Fuel, Kerosene, LNG | Marine diesel, Jet Fuel, Kerosene, LNG |
| Output Speed | 16,000 rpm | 15,400 rpm | 16,000 rpm |
FEATURES
- Compact, lightweight
- Operates on marine diesel fuel
- Small installed volume/low installed weight
- Modular engine design reduces maintenance cost
- Simple installation with cold end drive and cantilever mount
- Precise digital engine control and monitoring
- No warm up required/start capability down to -50 °C
- Low vibration
APPLICATIONS
- Corvettes, fast attack craft
- Coastal interdiction, fast patrol boats
- Special operations vessels
- Air cushion vehicles, surface effect ships
BENEFITS
- Proven reliability with U.S. Navy, foreign navies and other applications worldwide
- Ideally suited for CODAG and CODOG systems
- Qualified to MIL E 17341C
- Vericor worldwide support
